Low Voltage Switchgear

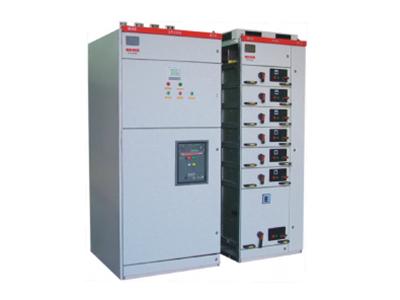

MNS Low Voltage Withdrawable Switchgear
Rated voltage (V) 660
Rated frequency (Hz) 50, 60
Rated current (A) 600, 1000, 1600, 2000, 3200, 5000
Rated insulation voltage(V) 660
1s Short-time withstand current (kA) 30, 40, 50, 70, 65, 85, 100
MNS Low Voltage Withdrawable Switchgear
GCS Low Voltage Withdrawable Switchgear
Rated voltage (V) Main circuit: AC 380(400), (600)
Auxiliary circuit: AC 220, 380(400) DC 110, 220
Rated frequency (Hz) 50, 60
Rated current (A) 4000
Rated short-time withstand current(kA/1s) Busbar: 50, 80
Peak withstand current (kA/0.1s) Busbar: 105, 176
GCS Low Voltage Withdrawable Switchgear

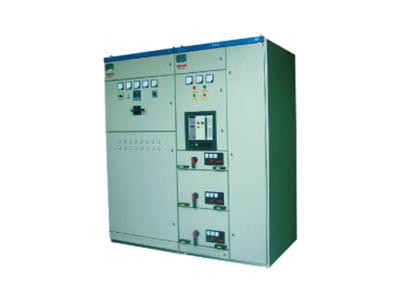

GCK Low Voltage Withdrawable Switchgear
Max. working voltage (V) 660
Rated frequency (Hz) 50, 60
Max working current (A) 3150
GCK Low Voltage Withdrawable Switchgear

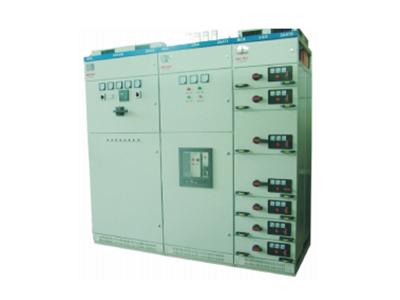

MCS Low Voltage Withdrawable Switchgear
Rated working voltage (V) AC: 380, 660
Rated frequency (Hz) 50, 60
Max working current of main busbar(A) 5000
1s Short-time withstand current (kA) Main busbar: 100
Peak withstand current (kA) Main busbar: 220
MCS Low Voltage Withdrawable Switchgear
Prisma Low Voltage Withdrawable Switchgear
Max. voltage (V) 690
Rated frequency (Hz) 50, 60
Rated current (A) 630~4000
Rated insulation voltage (V) 1000
Rated impluse withstand voltage (kV) 12
Prisma Low Voltage Withdrawable Switchgear
Blockset Low Voltage Withdrawable Switchgear
Rated insulation voltage (V) AC 660(1000)
Rated frequency (Hz) 50, 60
Rated current (A) Horizontal bus bar: ≤6300 Vertical bus bar: Mw≤1000, D≤3200 Cabinet unit: ≤400
Rated peak withstand current (kA) 63, 105, 187, 220
Rated short time withstand current(kA) 30, 50, 85, 100
Blockset Low Voltage Withdrawable Switchgear
GGD Low Voltage Fixed Switchgear
Rated voltage (V) 400
Rated frequency (Hz) 50, 60
Rated short circuit breaking current (kA) 15, 30, 50
1s Rated short time withstand current(kA) 15, 30, 50
Rated peak withstand current (kA) 30, 63, 105
GGD Low Voltage Fixed Switchgear
HGBD Low Voltage Fixed Switchgear
Rated voltage (V) AC 380,  660
Rated frequency (Hz) 50
Max. working current (A) Main busbar:  4000
1s Short time withstand current(kA) 80
Peak withstand current (kA) Main busbar: 176
HGBD Low Voltage Fixed Switchgear
XL-21(G) Low voltage power Panel
Main circuit rated voltage (V) AC 400
Auxiliary circuit rated voltage (V) AC 220, 380
Rated frequency (Hz) 50, 60
Rated current (A) ≤1250
Rated insulation voltage (V) 660
XL-21(G) Low voltage power Panel
HYDJ1 Capacitor Compensation Panel
Rated voltage (Ue) (V) AC 380
Rated frequency (Hz) 50
Rated current (A) Main switch: 630
Main busbar: 412
Rated short time withstand current (kA) Main busbar: 15
Rated peak withstand current (kA) Main busbar: 30
HYDJ1 Capacitor Compensation Panel
HY-JXF1 Double-power Cubicle
Rated voltage (V) 380
Rated frequency (Hz) 50
Rated current (A) 200~63
Rated short time withstand current (kA) 6
Rated peak withstand current (kA) 10.2
HY-JXF1 Double-power Cubicle
HY-JXF2 Motor Distribution Cubicle
Rated voltage (V) 380
Rated frequency (Hz) 50
Rated current (A) 80~10
Rated short time withstand current (kA) 6
Rated peak withstand current (kA) 10.2
HY-JXF2 Motor Distribution Cubicle
JP Cubicle
Rated voltage (V) AC 380
Rated isolation voltage(V) AC 660
Compensation way Three-phase compensation & single-phase compensation
Compensation capacity 420kvar~60kvar
Compensation way Circulation switch,  encoding switch,  fuzzy controlautomatic switch
JP Cubicle

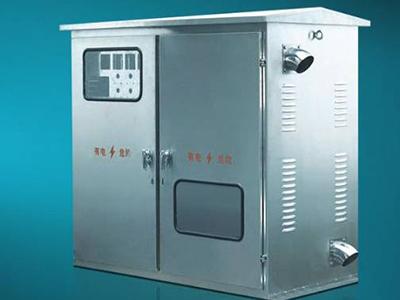

JPZ Integrated Distribution Box
Rated voltage (V) 400
Rated current (A) 100~630
Lightning impulse withstand voltage (kV) 6
1 s Rated short time withstand current (kA) 15
Rated peak withstand current (kA) 30
JPZ Integrated Distribution Box

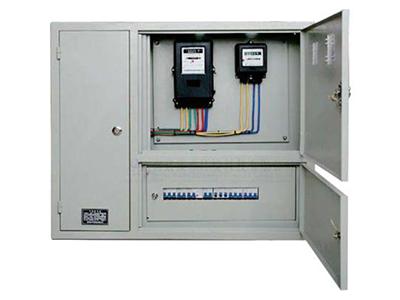

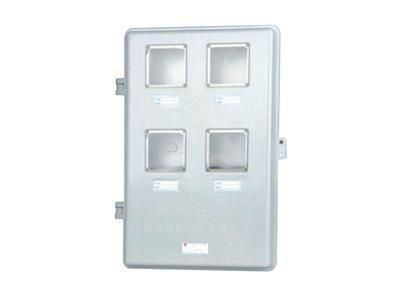

HY-DBX Meter Box
Rated voltage (V) 380, 220
Rated frequency (Hz) 50
Rated current (A) 225-10
Rated short time withstand current (kA) 6
Rated peak withstand current (kA) 10.2
HY-DBX Meter Box

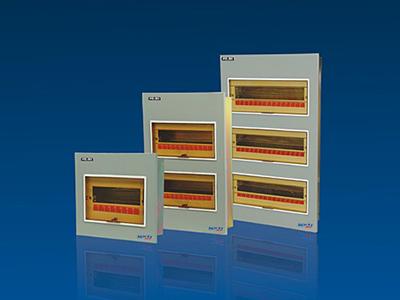

HY-PZ30 Lighting Box
Rated voltage (Ue) (V) 380, 220
Rated frequency (Hz) 50
Rated current (A) 100-10
Rated short time withstand current (kA) 4
Rated insulation voltage (Ui) (V) 400
HY-PZ30 Lighting Box

XGN74-12/630(J200)-20 Type Ring Main Unit (with branch fast plug in & out function)-Node Cabinet has a group of main lines with three-position load switchgear. The main circuit is equipped with the traditional functions of SF6 insulated metal enclosed switch and anti-misoperation interlocking function.
