Power Quality Device

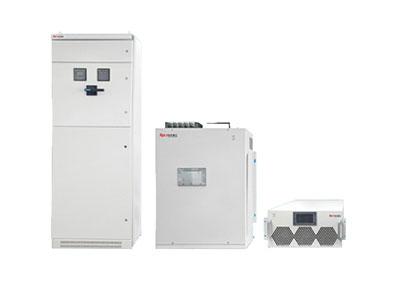

HY-SVG/ASVG Static Var Generator Series
Rated voltage AC400V±20%
Rated frequency 50Hz
Method of connecting wire three-phase three-wire/three-phase four-wire
Single module compensation capacity 35kVar, 50kVar, 75kVar, 100kVar
Objective power factor -1~1 (can be set)
HY-SVG/ASVG Static Var Generator Series

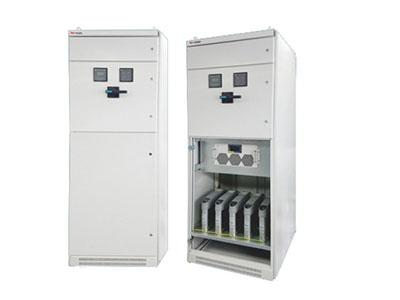

HY-HSVG Hybrid Reactive Power Compensation Device Series
High performance cost ratio Combine active and passive, passive reduces cost
Fast response Response time ≤ 10ms
Double-direction compensation Capacity and sensibility can be compensated
Man-machine coordination Real-time display waveform and data of power quality.
Strong filtering capability 2-13times harmonic filtering
HY-HSVG Hybrid Reactive Power Compensation Device Series

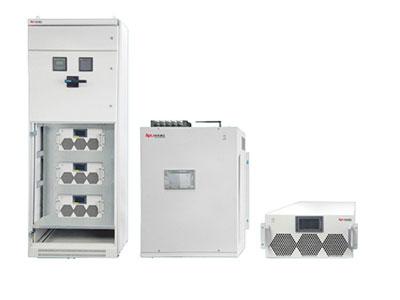

HY-APF Active Power Filter Series
Rated voltage AC400V±20%
Rated frequency 50Hz
Connecting method three-phase three-wire/three-phase four-wire
Single module compensation capacity 35A, 50A, 75A, 100A, 150A
Filter range 2~51 times
HY-APF Active Power Filter Series
HY-HAPF Hybrid Filter Compensation Device Series
High performance The passive part eliminates a certain number of harmonics, and the active part further enhances the filtering performance.
Strong filtering capability 2-51 times harmonic filtering, highest filtration rate ≥97%
Fast response Total response time ≤ 10ms
High performance cost ratio Combine active and passive, passive reduces cost
Remote monitoring Multiple communication interface (RS485/RS232/WIFI/Bluetooth), standard communication protocol, cloud monitoring platform, big data analysis.
HY-HAPF Hybrid Filter Compensation Device Series

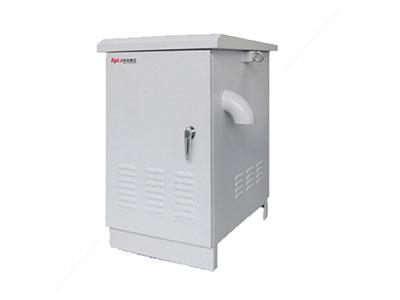

HY-SPC Three-phase Unbalanced Automatic Regulating Device Series
Rated voltage AC400V±20%
Rated frequency 50Hz
Connecting method three-phase three-wire/three-phase four-wire
Single module compensation capacity 35kVar, 50kVar, 75kVar, 100kVar, 150kVar
Unbalanced compensation Imbalances <3%
HY-SPC Three-phase Unbalanced Automatic Regulating Device Series

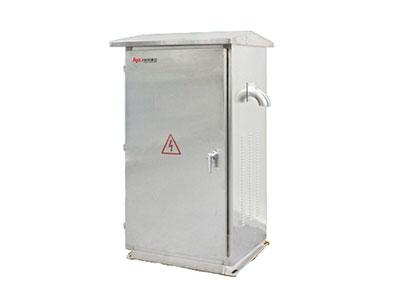

HY-HSPC Hybrid Three-phase Unbalanced Automatic Regulating Device Series
Rated voltage AC400V±20%
Rated frequency 50Hz
Connecting method three-phase three-wire/three-phase four-wire
Single module compensation capacity 30/70kVar, 30/120kVar, 50/100kVar, 50/120kVar
Unbalanced compensation Imbalances <3%
HY-HSPC Hybrid Three-phase Unbalanced Automatic Regulating Device
Series

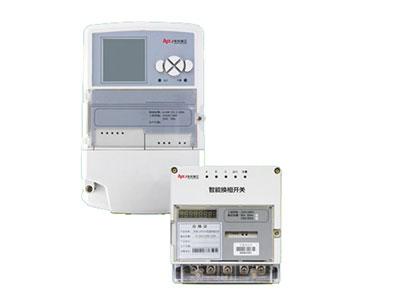

HY-TPS Intelligent Phase-change System Series
Rated operational voltage AC380V/220V
Connecting method three-phase three-wire/three-phase four-wire
Overall power consumption ≤10W
Rated current 120A
Protection grade IP65
HY-TPS Intelligent Phase-change System Series

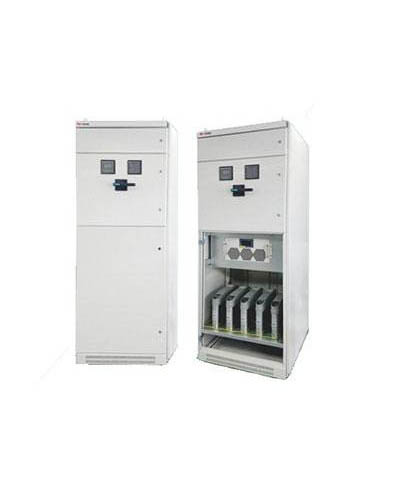

HY-TSC Dynamic Reactive Power Compensation Device Series
Rated operational voltage AC400V±20%
Rated frequency 50Hz
Connecting method three-phase three-wire/three-phase four-wire
Dynamic response time ≤20ms
Switching delay 20ms~100s
HY-TSC Dynamic Reactive Power Compensation Device Series

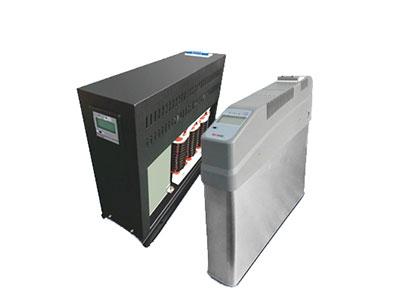

HY-RZC Intelligent Capacitor Series
Rated voltage AC400V±20%
Rated frequency 50Hz
Capacitor switching delay 5~18s is adjustable
Sensitivity 200mA
Control switching accuracy 100%
HY-RZC Intelligent Capacitor Series
