Fixed AC Metal Clad Switchgear

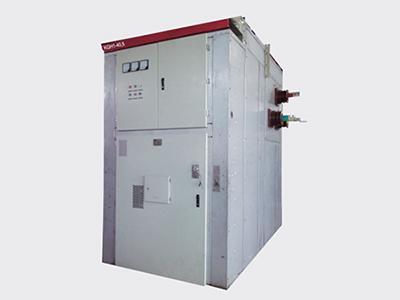

KGH1-40.5 Fixed AC Metal-clad Switchgear
Rated voltage (kV) 40.5
Rated frequency (Hz) 50
Rated current (A) 630, 1250,  2000, 2500
4s Rated short-time withstand current (kA) 20, 25, 31.5
Rated peak withstand current (kA) 50, 63, 80
KGH1-40.5 Fixed AC Metal-clad Switchgear

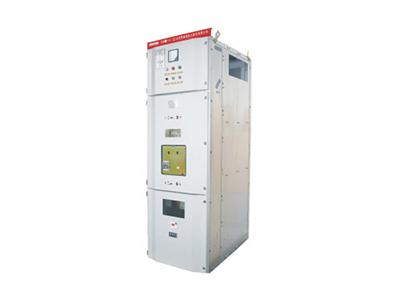

KGN-12 Fixed AC Metal-clad Switchgear
Rated voltage (kV) 12
Rated frequency (Hz) 50, 60
Rated current (A) 630, 1250
4s Rated short-time withstand current (kA) 20, 25, 31.5
Rated peak withstand current (kA) 50, 63, 80
KGN-12 Fixed AC Metal-clad Switchgear

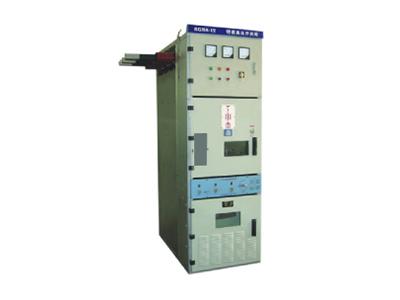

KGN8-12 Fixed Metal-clad Switchgear
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) Main busbar: 1250, 1600, 2000, 2500, 3150, 4000, 5000(air-cooled)
Branch busbar: 630, 1250, 1600, 2000, 2500, 3150, 4000, 5000(air-cooled)
Rated short-time withstand current (kA) 31.5, 40, 50
Rated peak withstand current (kA) 82, 104, 130
KGN8-12 Fixed Metal-clad Switchgear

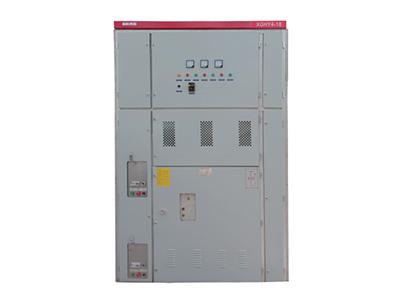

XGHY4-18 Fixed AC Metal-clad Switchgear
Rated voltage (kV) 18
Rated frequency (Hz) 50
Rated current (A) 6300
2s Rated short-time withstand current (kA) 63
Rated peak withstand current (kA) 176
XGHY4-18 Fixed AC Metal-clad Switchgear

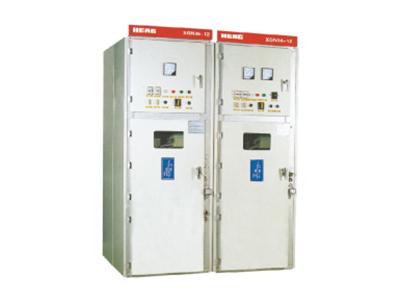

XGN36-12 (DXG-12) AC Fixed Metal-clad Switchgear
Rated voltage (kV) 12
Rated frequency (Hz) 50, 60
Rated current (A) 400, 630, 1250, 1600, 2000, 3150
4s Rated short-time withstand current (kA) 12.5, 16, 20, 25, 31.5, 40
Rated peak withstand current (kA) 31.5, 40, 50, 63, 80, 100
XGN36-12 (DXG-12) AC Fixed Metal-clad Switchgear

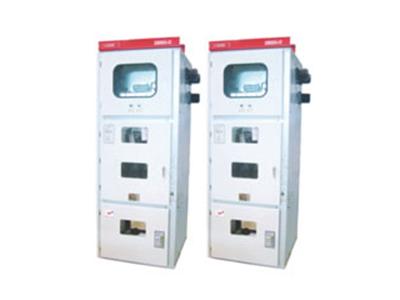

XGN66A-12 AC Fixed Type Metal-clad Switchgear
Rated voltage (kV) 3.6~12
Rated frequency (Hz) 50
Rated current (A) 630, 1250
4s Rated short-time withstand current (kA) 20, 25, 31.5
Rated peak withstand current (kA) 50, 63, 80
XGN66A-12 AC Fixed Type Metal-clad Switchgear

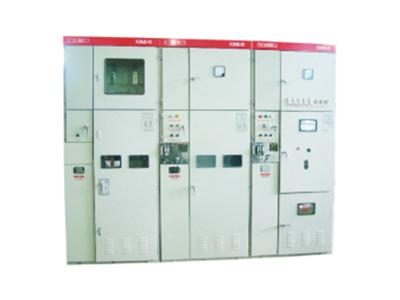

XGN2-12 Fixed Type Metal-clad Switchgear
Rated voltage (kV) 3.6~12
Rated frequency (Hz) 50, 60
Rated current (A) 630, 1250
4s Rated short-time withstand current (kA) 20, 25, 31.5
Rated peak withstand current (kA) 50, 63, 80
XGN2-12 Fixed Type Metal-clad Switchgear
