Ring Main Unit and Others

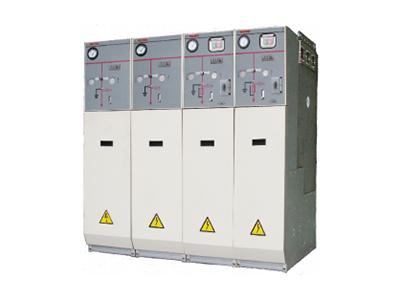

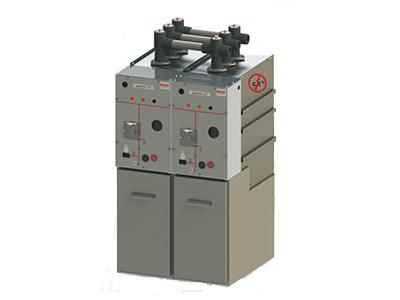

XGN74-12 AC Metal-clad SF6 Ring Main Unit
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) LBS : 630
Combination apparatus : 100
Rated short-time withstand current (kA) 20
Rated peak withstand current (kA) 50
XGN74-12 AC Metal-clad SF6 Ring Main Unit

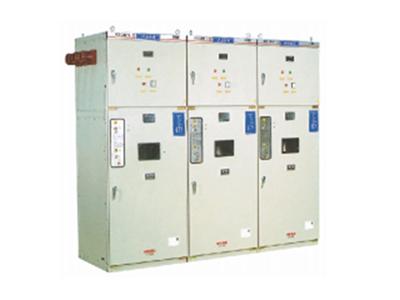

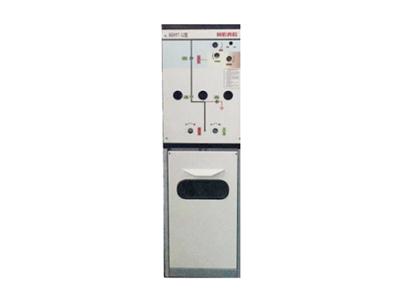

HXGN11-12 AC Metal-clad Ring Main Unit
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) Main busbar: 630
3s Rated short-time withstand current (kA) 20
Rated peak withstand current (kA) 50
HXGN11-12 AC Metal-clad Ring Main Unit

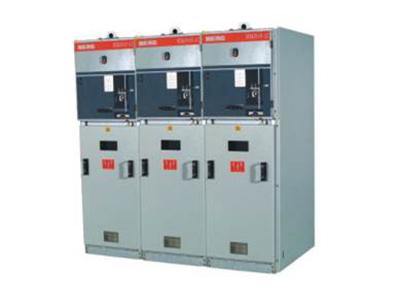

HXGN15-12 AC Metal-clad Ring Main Unit
Rated voltage (kV) 12
Rated frequency (Hz) 50, 60
Rated current (A) Main busbar: 630
3s Rated short-time withstand current (kA) 20
Rated peak withstand current (kA) 50
HXGN15-12 AC Metal-clad Ring Main Unit
XGHY2-12 AC Metal-clad Solid Ring Main Unit
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) 630
Rated short circuit breaking current (kA) 20
Rated short circuit making current (kA) 50
XGHY2-12 AC Metal-clad Solid Ring Main Unit
XGN118-12 AC Metal-clad Air Ring Main Unit
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) 630
Rated short circuit breaking current (kA) 20
Rated peak withstand current (kA) 50
XGN118-12 AC Metal-clad Air Ring Main Unit
XGW9-12/24 Outdoor AC Metal-clad Switching Station
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) V/C/D unit: 630
F unit: 125
1min P.F withstand voltage (fracture /earthing) (kV) 48/42
Lightning impulse (fracture /earthing) (kV) 85/75
XGW9-12/24 Outdoor AC Metal-clad Switching Station
XGHY6-12 AC Metal-clad Switching Station
Rated voltage (kV) 12
Rated frequency (Hz) 50
Rated current (A) V/C/D unit: 630
F unit: 125
1min P.F withstand voltage (phase to ground / fracture)(kV) 48
Lightning impulse(phase to ground / fracture) (kV) 85
XGHY6-12 AC Metal-clad Switching Station

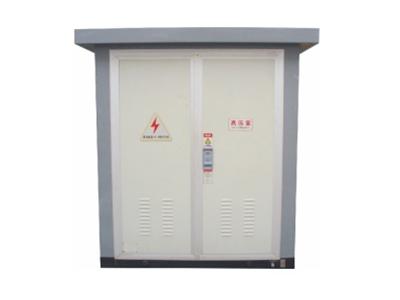

DFW(HY1)-12/40.5 AC Outdoor Cable Distribution Box
Rated voltage (kV) 12
Rated current (A) 200, 600
15min DC withstand voltage (kV) 52
1min P.F withstand voltage (kV) 42
Lightning impulse withstand voltage (kV) 75
DFW(HY1)-12/40.5 AC Outdoor Cable Distribution Box
